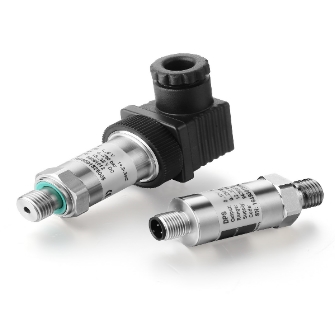

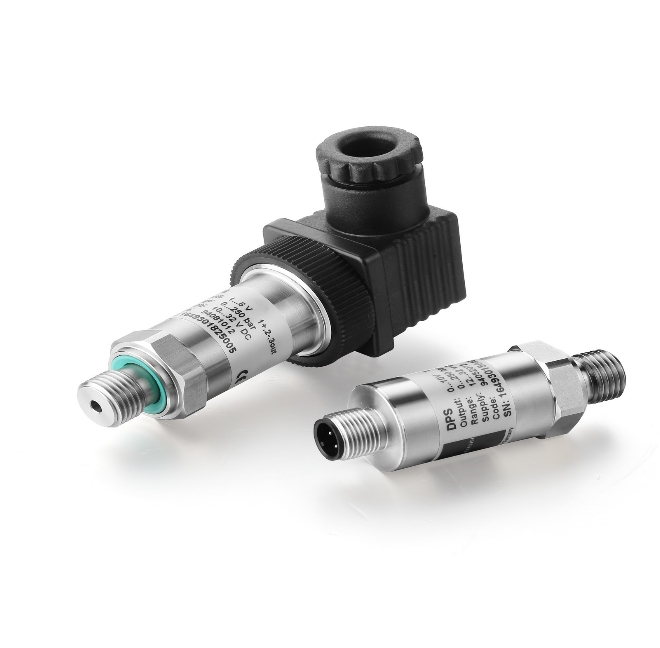

The DPS contain only a few active devices, such as a piezo-reflective poly-silicon thin-film measuring cell, a signal processing ASIC and a U / I or U / U converter.

The calibration takes place electronically, which means that the pressure transducers have a small overall error and are long-term stable. The hermetically sealed and completely vacuum-tight stainless steel thin-film measuring cell ensures high long-term durability and stability. The ASIC is a programmable precision CMOS ASIC with EEPROM data storage and analogue signal path, which is qualified for an extended working temperature range.

Advantages

•      Pressure: Relative pressure and absolute pressure possible
•      Pressure transmitter with high overload safety
•      Sealing-free in the area of the medium
•      Fully welded stainless steel thin film sensor
•      No transfer liquid (dry measuring cell)
•      Robust against shock, pulsation and vibration (shock> 1000g, vibration> 20g)
•      Very high pressure resistance with dynamic load changes
•      Very good reproducibility and long-term stability
•      Very large temperature range

•      Flexible design of the process and electrical connection variants by modular system
